Product
BONTEPONE

BONTEPONE 1010

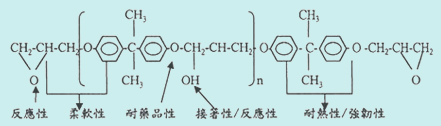

#1010 is a general epoxy resin which is composed of Bisphenol A and Epichlorohydrin.

Property

  • Viscosity (cps/25℃) 11000~15000
  • Color (C/H) < 2
  • Ratio (20℃) 1.14~1.18
  • EEW 185~195
  • [CL] hydrolysable chloride ≦ 1000ppm

Feature

  • 1.It can apply with polyamide resin hardener.
  • 2.It can apply with modified amine resin hardener.
  • 3.It can apply with latent resin hardener.
  • 4.It can be used as baking paints resin formulation.
Product Viscosity
(CPS/25℃)
Color
(MAX)
Epoxy Equivalent weight
(EEW)
Special Gravity
(20℃)
Solid Content
(%)
Application Property
1010 11000~15000 < 2 185~195 1.16±0.02 100 General applied to adhesive, lamination, casting, painting and civil engineering. Made of Bisphenol A and Epichlorohydrin for general application.
1030 800~1200 < 3 190~200 1.10±0.02 100 General applied to adhesive, lamination, casting, painting and civil engineering. Made of Bisphenol A and Epichlorohydrin for general application.
1030-56 1500~2500 <5 190~200 1.10±0.02 100 General applied to adhesive, lamination, casting, painting and civil engineering. Made of Bisphenol A and Epichlorohydrin for general application. (medium viscosity).
1075 10000~16000 < 2 500~600 1.10±0.03 75 General applied to adhesive, lamination, casting, painting and civil engineering. Solvent type resin which is made of Bisphenol A and Epichlorohydrin for general application.
1140 100~200 -- -- -- 60 Applied to ceramics, electric wire and coating for color steel plate. Mix liquor of single type epoxy resin, cure at 100℃, long storage.
1140-13 40~70 -- -- -- 50 Applied to ceramics, electric wire and coating for color steel plate. Mix liquor of single type epoxy resin, cure at 100℃, long storage.
1147A/B 25000~45000 milky white -- -- 100 Insulation casting of electric components, adhesion for metal, ceramics and glass. Single type, insulation epoxy resin, long storage by separated package.
Dilute agent EA 5~20 25
(APHA)
275~290 0.90±0.02 -- To dilute epoxy resin To reduce viscosity of epoxy resin, light smell.
Dilute agent EB 5~20 < 3 145~155 0.93±0.02 -- To dilute epoxy resin To reduce viscosity of epoxy resin, strong smell.
Dilute agent EN 5~20 30
(APHA)
235~245 0.96±0.02 -- To reduce viscosity of epoxy resins. Dilute of epoxy resin, light smell.
Dilute agent AB -- 10
(APHA)
-- 1.04±0.02 -- Applied to epoxy resin and hardeners. Less than 10% of usage, affect the typical properties of small. Non-reactive and Non-volatile diluent.
WAC-1175 1500~2500 < 3 -- -- 45%~55% Waterproof construction for cement roof, interior and exterior walls and stones. Waterproof coating made of polyurethane copolymer.
WAC-1178 2500~3500 MAX -- -- 45%~55% Waterproof construction for cement roof, interior and exterior walls and stones. Waterproof coating made of polyurethane copolymer.
WAC-1179 44000 ± 76000 MAX -- -- 65%~80% Waterproof construction for cement roof, interior and exterior walls and stones. Waterproof coating made of polyurethane copolymer.

(請向左右滑動)

Product Viscosity(CPS/25℃) Color(MAX) Epoxy Equivalent weight(EEW) Hydrolyzable chloride (ppm) Solid Content
(%)
Application Property
TTR-P70-K70 1500-4500 9.5-11.5 2.9-3.2 50-500 68-72% For copper foil base plate base epoxy flame retardant. Containing phosphating, the flame-retardant effect can reach UL94-V-0.
TTR-B50-K70 1000-3000 -- 370-410 0.06 Max 79.0-81.0 For copper foil base plate base epoxy flame retardant. Containing bromine, the flame retardant effect can reach UL94-V-0.
